complexType "ContractIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-doc-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 1 location

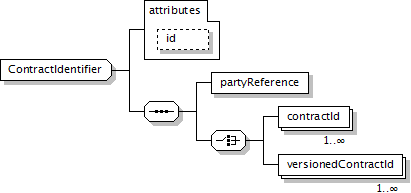

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
partyReference, (contractId+ | versionedContractId+)
</...>
Content Model Elements (3):
contractId (defined in ContractIdentifier complexType),
partyReference (defined in ContractIdentifier complexType),
versionedContractId
Known Direct Subtypes (1):
LoanContractIdentifier
Known Indirect Subtypes (4):
LetterOfCredit, LetterOfCreditSummary, LoanContract, LoanContractSummary
All Direct / Indirect Based Elements (9):
contract (defined in LoanContractDetails.model group),
contract (in newContracts),
contractIdentifier,
contractSummary,
letterOfCredit (defined in LetterOfCreditDetails.model group),
letterOfCredit (in outstandingContractsStatement),
letterOfCreditIdentifier,
letterOfCreditSummary,
loanContract
Known Usage Locations
Annotation
A type defining a contract identifier issued by the indicated party.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="ContractIdentifier">
<xsd:sequence>
<xsd:element name="partyReference" type="PartyReference"/>
<xsd:choice>
<xsd:element maxOccurs="unbounded" name="contractId" type="ContractId"/>
<xsd:element maxOccurs="unbounded" name="versionedContractId" type="VersionedContractId"/>
</xsd:choice>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 3/3)
contractId
Type:
ContractId, simple content
A contract id which is not version aware.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="contractId" type="ContractId"/>
partyReference
Type:
PartyReference, empty content
A pointer style reference to a party identifier defined elsewhere in the document. The party referenced has allocated the contract identifier.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="partyReference" type="PartyReference"/>
versionedContractId
Type:
VersionedContractId, complex content
A contract id which is version aware.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="versionedContractId" type="VersionedContractId"/>
