complexType "CurrencyPairClassification"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	simple, 2 attributes
Defined:	globally in fpml-doc-5-13.xsd; see XML source
Includes:	definitions of 2 attributes
Used:	at 1 location

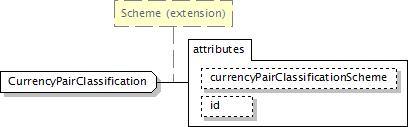

Component Diagram

XML Representation Summary

<...

currencyPairClassificationScheme	=	xsd:anyURI : "http://www.fpml.org/coding-scheme/esma-currency-pair-classification"
id	=	xsd:ID

Content:

{ xsd:normalizedString }

</...>

Simple Content Restrictions:

MaxLength:	255
MinLength:	0

All Direct / Indirect Based Elements (1):

Known Usage Locations

Annotation

A type containing a code representing the risk classification of a currency pair, as specified by a regulator.

Type Definition Detail

Type Derivation Tree

xsd:normalizedString (restriction)

Scheme (extension)

CurrencyPairClassification

Derivation:

extension of Scheme

XML Source (w/o annotations (1); see within schema source)

<xsd:simpleContent>

<xsd:extension base="Scheme">

<xsd:attribute default="http://www.fpml.org/coding-scheme/esma-currency-pair-classification" name="currencyPairClassificationScheme" type="NonEmptyURI" use="optional"/>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 2/2)

currencyPairClassificationScheme

Type:	NonEmptyURI
Use:	optional

Attribute Value

xsd:anyURI

MinLength:	1
Default:	"http://www.fpml.org/coding-scheme/esma-currency-pair-classification"

XML Source (see within schema source)

<xsd:attribute default="http://www.fpml.org/coding-scheme/esma-currency-pair-classification" name="currencyPairClassificationScheme" type="NonEmptyURI" use="optional"/>

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>
