complexType "ReportingRegimeIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-doc-5-13.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 2 locations

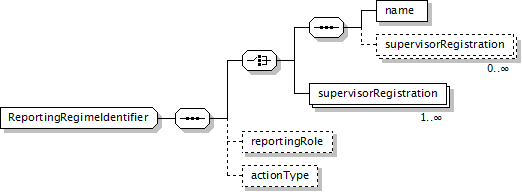

Component Diagram
XML Representation Summary
<...>

Content:
((name, supervisorRegistration*) | supervisorRegistration+), reportingRole?, actionType?
</...>
Content Model Elements (5):
actionType (defined in ReportingRegimeIdentifier complexType),
name (defined in ReportingRegimeIdentifier complexType),
reportingRole (defined in ReportingRegimeIdentifier complexType),
supervisorRegistration (defined in ReportingRegimeIdentifier complexType),
supervisorRegistration (defined in ReportingRegimeIdentifier complexType)
All Direct / Indirect Based Elements (2):
reportingRegime (in partyTradeInformation in withdrawal),
reportingRegime (in withdrawal)
Known Usage Locations
Annotation
A type that provides identification for reporting regimes.
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="ReportingRegimeIdentifier">
<xsd:sequence>
<xsd:choice>
<xsd:sequence>
<xsd:element name="name" type="ReportingRegimeName"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="supervisorRegistration" type="SupervisorRegistration"/>
</xsd:sequence>
<xsd:element maxOccurs="unbounded" name="supervisorRegistration" type="SupervisorRegistration"/>
</xsd:choice>
<xsd:element minOccurs="0" name="reportingRole" type="ReportingRole"/>
<xsd:element minOccurs="0" name="actionType" type="ActionType"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 5/5)
actionType
Type:
ActionType, simple content
Reports a regulator-specific code for the action associated with this submission. Used, for example, to report the ESMA action type.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="actionType" type="ActionType"/>
name
Type:
ReportingRegimeName, simple content
Identifies the reporting regime under which this data is reported. For example, Dodd-Frank, MiFID, HongKongOTCDRepository, ODRF
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="name" type="ReportingRegimeName"/>
reportingRole
Type:
ReportingRole, simple content
Identifies the role of this party in reporting this trade for this regulator; roles could include ReportingParty and Voluntary reporting.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="reportingRole" type="ReportingRole"/>
supervisorRegistration
Type:
SupervisorRegistration, complex content
Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="supervisorRegistration" type="SupervisorRegistration"/>
supervisorRegistration
Type:
SupervisorRegistration, complex content
Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="supervisorRegistration" type="SupervisorRegistration"/>
