complexType "EquityStrike"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-eq-shared-5-13.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 3 locations

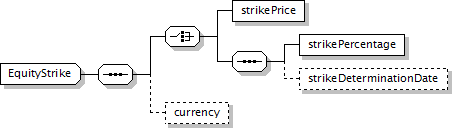

Component Diagram
XML Representation Summary
<...>

Content:
(strikePrice | (strikePercentage, strikeDeterminationDate?)), currency?
</...>
Content Model Elements (4):
currency (defined in EquityStrike complexType),
strikeDeterminationDate,
strikePercentage (defined in EquityStrike complexType),
strikePrice (defined in EquityStrike complexType)
Known Direct Subtypes (1):
GenericOptionStrike
All Direct / Indirect Based Elements (3):
strike (defined in EquityDerivativeShortFormBase complexType),
strike (in equityOption),
strike (in genericProduct)
Known Usage Locations
Annotation
A type for defining the strike price for an equity option. The strike price is either: (i) in respect of an index option transaction, the level of the relevant index specified or otherwise determined in the transaction; or (ii) in respect of a share option transaction, the price per share specified or otherwise determined in the transaction. This can be expressed either as a percentage of notional amount or as an absolute value.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="EquityStrike">
<xsd:sequence>
<xsd:choice>
<xsd:element name="strikePrice" type="xsd:decimal"/>
<xsd:sequence>
<xsd:element name="strikePercentage" type="Percentage"/>
<xsd:element minOccurs="0" name="strikeDeterminationDate" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
</xsd:choice>
<xsd:element minOccurs="0" name="currency" type="Currency"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
currency
Type:
Currency, simple content
The currency in which an amount is denominated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="currency" type="Currency"/>
strikeDeterminationDate
Type:
AdjustableOrRelativeDate, complex content
The date on which the strike is determined, where this is not the effective date of a forward starting option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="strikeDeterminationDate" type="AdjustableOrRelativeDate"/>
strikePercentage
Type:
Percentage, simple content
The price or level expressed as a percentage of the forward starting spot price. A value expressed in percentage units i.e. 5 means 5%.
Simple Content
xsd:decimal
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="strikePercentage" type="Percentage"/>
strikePrice
Type:
xsd:decimal, predefined, simple content
The price or level at which the option has been struck.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="strikePrice" type="xsd:decimal"/>
