complexType "PrePayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 7 elements
Defined:
globally in fpml-eqd-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

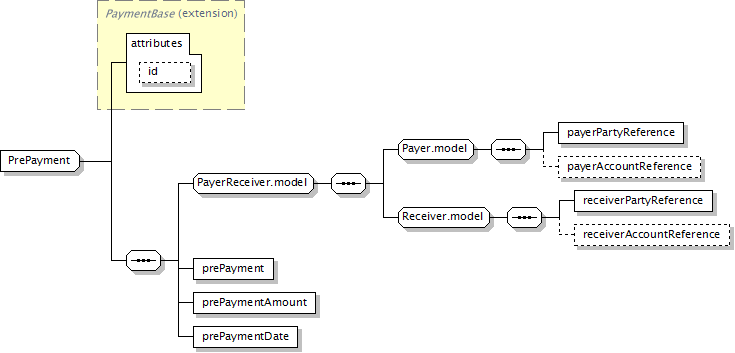

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, prePayment, prePaymentAmount, prePaymentDate
</...>
Content Model Elements (7):
payerAccountReference,
payerPartyReference (defined in Payer.model group),
prePayment (defined in PrePayment complexType),
prePaymentAmount,
prePaymentDate,
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group)
All Direct / Indirect Based Elements (2):
prePayment (defined in EquityExerciseValuationSettlement complexType),
prePayment (in equityAccumulator)
Known Usage Locations
Annotation
A type for defining PrePayment.
Type Definition Detail
Type Derivation Tree
PaymentBase (extension)
  PrePayment
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="PrePayment">
<xsd:complexContent>
<xsd:extension base="PaymentBase">
<xsd:sequence>
<xsd:group ref="PayerReceiver.model"/>
<xsd:element name="prePayment" type="xsd:boolean"/>
<xsd:element name="prePaymentAmount" type="NonNegativeMoney"/>
<xsd:element name="prePaymentDate" type="AdjustableDate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/7)
prePayment
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element name="prePayment" type="xsd:boolean"/>
prePaymentAmount
Type:
NonNegativeMoney, complex content
XML Source (see within schema source)
<xsd:element name="prePaymentAmount" type="NonNegativeMoney"/>
prePaymentDate
Type:
AdjustableDate, complex content
XML Source (see within schema source)
<xsd:element name="prePaymentDate" type="AdjustableDate"/>
