element <touch> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxTouch
Content:
complex, 11 elements
Defined:
locally within FxDigitalOption complexType in fpml-fx-5-13.xsd; see XML source

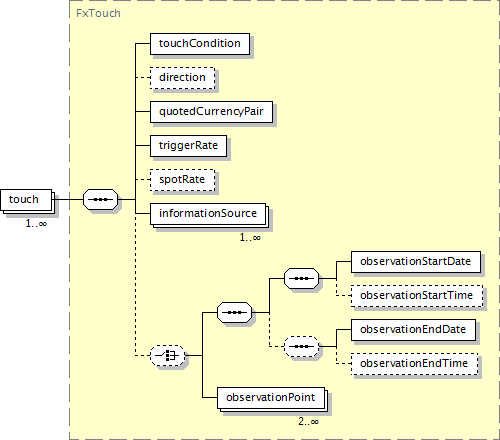

Component Diagram
XML Representation Summary
<touch>

Content:
touchCondition, direction?, quotedCurrencyPair, triggerRate, spotRate?, informationSource+, ((observationStartDate, observationStartTime?, (observationEndDate, observationEndTime?)?) | observationPoint[2..*])?
</touch>
Content model elements (11):
direction (in touch in fxDigitalOption),
informationSource (in touch in fxDigitalOption),
observationEndDate (in touch in fxDigitalOption),
observationEndTime (in touch in fxDigitalOption),
observationPoint (in touch in fxDigitalOption),
observationStartDate (in touch in fxDigitalOption),
observationStartTime (in touch in fxDigitalOption),
quotedCurrencyPair (in touch in fxDigitalOption),
spotRate (in touch in fxDigitalOption),
touchCondition,
triggerRate (in touch in fxDigitalOption)
Included in content model of elements (1):
fxDigitalOption
Annotation
Defines one or more conditions underwhich the option will payout if exercisable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="touch" type="FxTouch"/>
