complexType "FxFlexibleForwardRate"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-fx-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

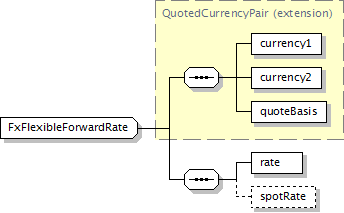

Component Diagram
XML Representation Summary
<...>

Content:
currency1, currency2, quoteBasis, rate, spotRate?
</...>
Content Model Elements (5):
currency1 (defined in QuotedCurrencyPair complexType),
currency2 (defined in QuotedCurrencyPair complexType),
quoteBasis (defined in QuotedCurrencyPair complexType),
rate (in forwardRate),
spotRate (in forwardRate)
All Direct / Indirect Based Elements (1):
forwardRate
Known Usage Locations
Type Definition Detail
Type Derivation Tree
QuotedCurrencyPair (extension)
  FxFlexibleForwardRate
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FxFlexibleForwardRate">
<xsd:complexContent>
<xsd:extension base="QuotedCurrencyPair">
<xsd:sequence>
<xsd:element name="rate" type="PositiveDecimal"/>
<xsd:element minOccurs="0" name="spotRate" type="PositiveDecimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/5)
rate
Type:
PositiveDecimal, simple content
Constant rate value, applicable for the duration of the execution period.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="rate" type="PositiveDecimal"/>
spotRate
Type:
PositiveDecimal, simple content
The spot exchange rate for the specified currency pair as per the specified quote basis, as at the trade date.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="spotRate" type="PositiveDecimal"/>
