element <accrualRegion> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxAccrualRegion
Content:
complex, 10 elements
Defined:
locally within FxAccrual complexType in fpml-fx-accruals-5-13.xsd; see XML source

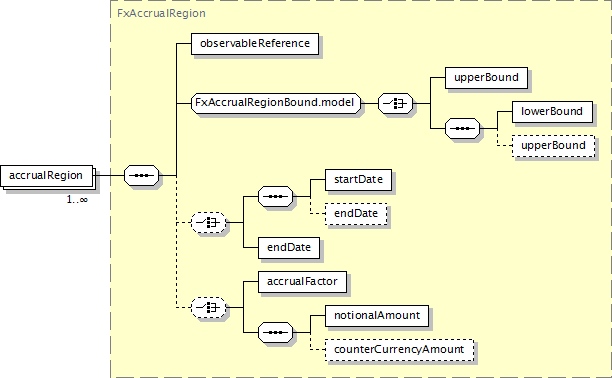

Component Diagram
XML Representation Summary
<accrualRegion>

Content:
observableReference, (upperBound | (lowerBound, upperBound?)), ((startDate, endDate?) | endDate)?, (accrualFactor | (notionalAmount, counterCurrencyAmount?))?
</accrualRegion>
Content model elements (10):
accrualFactor (in accrualRegion),
counterCurrencyAmount (in accrualRegion),
endDate (in accrualRegion),
endDate (in accrualRegion),
lowerBound (defined in FxAccrualRegionBound.model group),
notionalAmount (in accrualRegion),
observableReference (in accrualRegion),
startDate (in accrualRegion),
upperBound (defined in FxAccrualRegionBound.model group),
upperBound (defined in FxAccrualRegionBound.model group)
Included in content model of elements (4):
accrual (in fxAccrualDigitalOption),
accrual (in fxAccrualForward),
accrual (in fxAccrualOption),
accrual (in fxRangeAccrual)
Annotation
Defines the regions of the spot rate where fixings generate an accumulation of notional.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="accrualRegion" type="FxAccrualRegion"/>
