complexType "FxAccrualTrigger"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 5 elements
Defined:	globally in fpml-fx-accruals-5-13.xsd; see XML source
Includes:	definitions of 1 attribute, 1 element
Used:	at 1 location

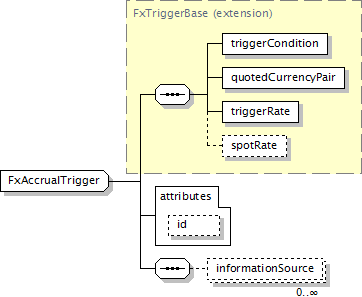

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (5):

spotRate (defined in FxTriggerBase complexType),

triggerRate (defined in FxTriggerBase complexType)

All Direct / Indirect Based Elements (1):

Known Usage Locations

Annotation

Describes a european trigger applied to an FX digtal option.

Type Definition Detail

Type Derivation Tree

FxAccrualTrigger

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="FxAccrualTrigger">

<xsd:complexContent>

<xsd:extension base="FxTriggerBase">

<xsd:sequence>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="informationSource" type="InformationSource"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

An anchor to be referenced from the accrual region bound.

XML Source (w/o annotations (1); see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 1/5)

Type:

The information source where a published or displayed market rate will be obtained, e.g. Telerate Page 3750.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="informationSource" type="InformationSource"/>
