element <fixingSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxWeightedFixingSchedule
Content:
complex, 12 elements
Defined:
locally within FxAveragingProcess complexType in fpml-fx-accruals-5-13.xsd; see XML source

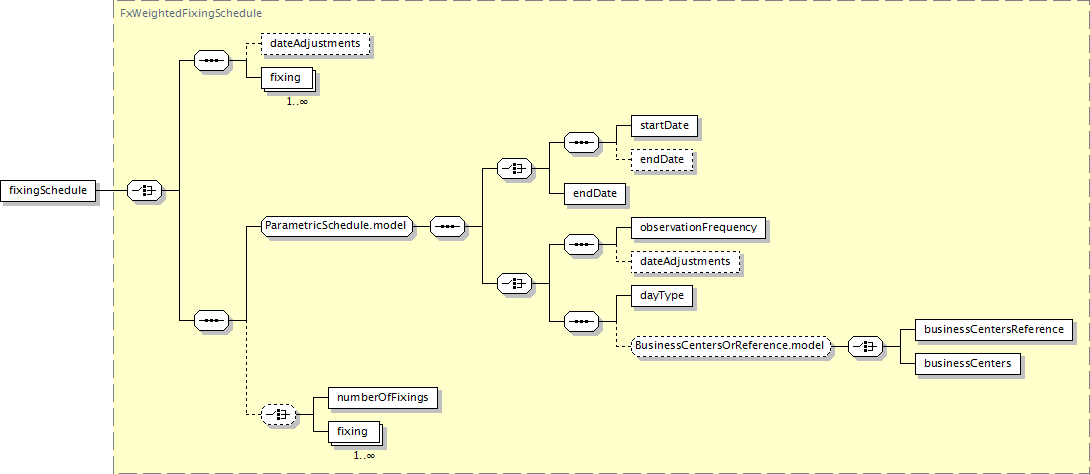

Component Diagram
XML Representation Summary
<fixingSchedule>

Content:
(dateAdjustments?, fixing+) | (((startDate, endDate?) | endDate), ((observationFrequency, dateAdjustments?) | (dayType, (businessCentersReference | businessCenters)?)), (numberOfFixings | fixing+)?)
</fixingSchedule>
Content model elements (12):
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
dateAdjustments (defined in ParametricSchedule.model group),
dateAdjustments (in fixingSchedule defined in FxAveragingProcess complexType),
dayType (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
fixing (in fixingSchedule defined in FxAveragingProcess complexType),
fixing (in fixingSchedule defined in FxAveragingProcess complexType),
numberOfFixings (in fixingSchedule defined in FxAveragingProcess complexType),
observationFrequency,
startDate (defined in ParametricSchedule.model group)
Included in content model of elements (4):
averageRate (in fxAccrualForward),
averageRate (in fxAccrualOption),
averageStrike (in fxAccrualOption),
averageStrike (in linearPayoffRegion in fxAccrualForward)
Annotation
Describes a parametric schedule of fixing dates.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixingSchedule" type="FxWeightedFixingSchedule"/>
