complexType "FxForwardStrikePrice"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 3 elements
Defined:	globally in fpml-fx-accruals-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

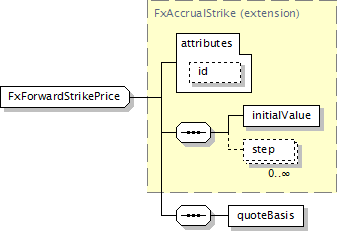

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (3):

initialValue (defined in Schedule complexType),

step (defined in Schedule complexType)

All Direct / Indirect Based Elements (1):

Known Usage Locations

As direct type of elements (1):

strike (in linearPayoffRegion in fxAccrualForward)

Annotation

A type that describes the rate of exchange between the two currencies of the leg of a deal.

Type Definition Detail

Type Derivation Tree

Schedule (extension)

FxForwardStrikePrice

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="FxForwardStrikePrice">

<xsd:complexContent>

<xsd:extension base="FxAccrualStrike">

<xsd:sequence>

<xsd:element name="quoteBasis" type="QuoteBasisEnum"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/3)

Type:

QuoteBasisEnum, simple content

The Quoted Currency Pair that is used across the product.

Simple Content

enumeration of xsd:token

Enumeration:

"Currency1PerCurrency2"	-	The amount of currency1 for one unit of currency2 See: http://www.FpML.org
"Currency2PerCurrency1"	-	The amount of currency2 for one unit of currency1 See: http://www.FpML.org

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="quoteBasis" type="QuoteBasisEnum"/>
