complexType "FxOptionStrikePrice"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-fx-accruals-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

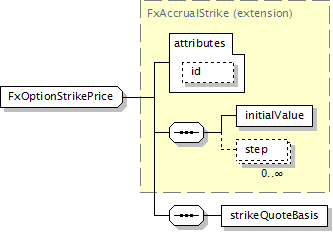

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
initialValue, step*, strikeQuoteBasis
</...>
Content Model Elements (3):
initialValue (defined in Schedule complexType),
step (defined in Schedule complexType),
strikeQuoteBasis (in strike in fxAccrualOption)
All Direct / Indirect Based Elements (1):
strike  (in fxAccrualOption)
Known Usage Locations
Annotation
A type that describes the rate of exchange at which the option has been struck.
Type Definition Detail
Type Derivation Tree
Schedule (extension)
  FxAccrualStrike (extension)
      FxOptionStrikePrice
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FxOptionStrikePrice">
<xsd:complexContent>
<xsd:extension base="FxAccrualStrike">
<xsd:sequence>
<xsd:element name="strikeQuoteBasis" type="StrikeQuoteBasisEnum"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
strikeQuoteBasis
Type:
StrikeQuoteBasisEnum, simple content
The method by which the strike rate is quoted.
Simple Content
enumeration of xsd:token
Enumeration:
"PutCurrencyPerCallCurrency"
 -
The strike price is an amount of putCurrency per one unit of callCurrency.
See:  http://www.FpML.org
"CallCurrencyPerPutCurrency"
 -
The strike price is an amount of callCurrency per one unit of putCurrency.
See:  http://www.FpML.org
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="strikeQuoteBasis" type="StrikeQuoteBasisEnum"/>
