complexType "FxSettlementSchedule"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 13 elements
Defined:
globally in fpml-fx-targets-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

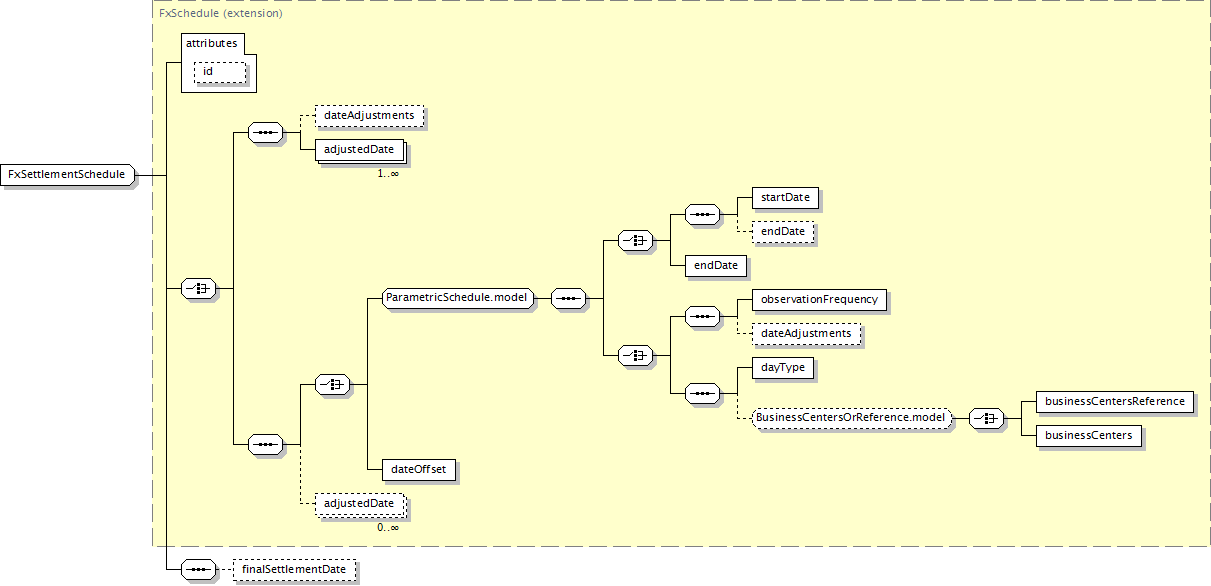

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
((dateAdjustments?, adjustedDate+) | (((((startDate, endDate?) | endDate), ((observationFrequency, dateAdjustments?) | (dayType, (businessCentersReference | businessCenters)?))) | dateOffset), adjustedDate*)), finalSettlementDate?
</...>
Content Model Elements (13):
adjustedDate (defined in FxSchedule complexType),
adjustedDate (defined in FxSchedule complexType),
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
dateAdjustments (defined in FxSchedule complexType),
dateAdjustments (defined in ParametricSchedule.model group),
dateOffset (defined in FxSchedule complexType),
dayType (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
finalSettlementDate (defined in FxSettlementSchedule complexType),
observationFrequency,
startDate (defined in ParametricSchedule.model group)
All Direct / Indirect Based Elements (2):
settlementSchedule (defined in FxSettlementDateOrSchedule.model group),
settlementSchedule (in fxTargetKnockoutForward)
Known Usage Locations
Type Definition Detail
Type Derivation Tree
FxSchedule (extension)
  FxSettlementSchedule
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="FxSettlementSchedule">
<xsd:complexContent>
<xsd:extension base="FxSchedule">
<xsd:sequence>
<xsd:element minOccurs="0" name="finalSettlementDate" type="xsd:date"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
finalSettlementDate
Type:
xsd:date, predefined, simple content
The final settlement date facilitates informing the final date without having to process all settlement dates in the schedule.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="finalSettlementDate" type="xsd:date"/>
