complexType "FxTarget"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 3 elements
Defined:	globally in fpml-fx-targets-5-13.xsd; see XML source
Includes:	definitions of 1 attribute, 3 elements
Used:	at 1 location

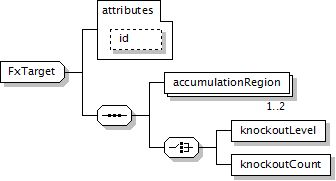

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (3):

All Direct / Indirect Based Elements (1):

Known Usage Locations

XML Source (see within schema source)

<xsd:complexType name="FxTarget">

<xsd:sequence>

<xsd:element maxOccurs="2" name="accumulationRegion" type="FxTargetAccumulationRegion"/>

<xsd:choice>

<xsd:element name="knockoutLevel" type="FxKnockoutLevel"/>

<xsd:element name="knockoutCount" type="FxKnockoutCount"/>

</xsd:choice>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID" use="optional"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID" use="optional"/>

Content Element Detail (all declarations; defined within this component only; 3/3)

Type:

XML Source (see within schema source)

Type:

FxKnockoutCount, complex content

XML Source (see within schema source)

<xsd:element name="knockoutCount" type="FxKnockoutCount"/>

Type:

FxKnockoutLevel, complex content

XML Source (see within schema source)

<xsd:element name="knockoutLevel" type="FxKnockoutLevel"/>
