complexType "FxTargetBarrier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 10 elements
Defined:
globally in fpml-fx-targets-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

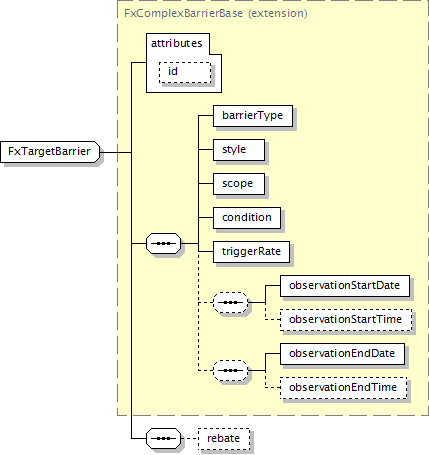

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
barrierType, style, scope, condition, triggerRate, (observationStartDate, observationStartTime?)?, (observationEndDate, observationEndTime?)?, rebate?
</...>
Content Model Elements (10):
barrierType (defined in FxComplexBarrierBase complexType),
condition (defined in FxComplexBarrierBase complexType),
observationEndDate (defined in FxComplexBarrierBase complexType),
observationEndTime (defined in FxComplexBarrierBase complexType),
observationStartDate (defined in FxComplexBarrierBase complexType),
observationStartTime (defined in FxComplexBarrierBase complexType),
rebate (in barrier in fxTargetKnockoutForward),
scope,
style,
triggerRate (defined in FxComplexBarrierBase complexType)
All Direct / Indirect Based Elements (1):
barrier  (in fxTargetKnockoutForward)
Known Usage Locations
Type Definition Detail
Type Derivation Tree
FxComplexBarrierBase (extension)
  FxTargetBarrier
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="FxTargetBarrier">
<xsd:complexContent>
<xsd:extension base="FxComplexBarrierBase">
<xsd:sequence>
<xsd:element minOccurs="0" name="rebate" type="FxTargetRebate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/10)
rebate
Type:
FxTargetRebate, complex content
A rebate payable in the event of knockout. This element may be produced in conjunction with a Global Knockout barrier (barrierType = "Knockout" scope = "Global"), and must be omitted otherwise.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="rebate" type="FxTargetRebate"/>
