complexType "FxTargetLeverage"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 9 elements
Defined:
globally in fpml-fx-targets-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 4 elements
Used:
at 1 location

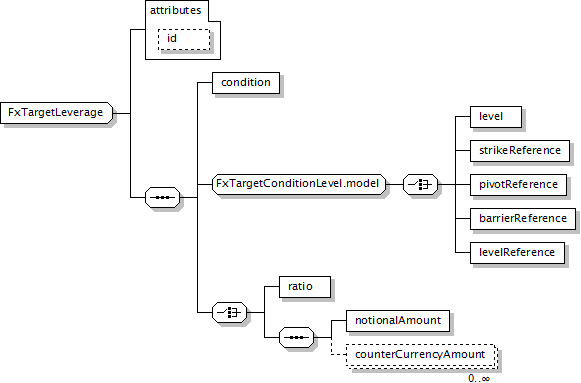

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
condition, (level | strikeReference | pivotReference | barrierReference | levelReference), (ratio | (notionalAmount, counterCurrencyAmount*))
</...>
Content Model Elements (9):
barrierReference (defined in FxTargetConditionLevel.model group),
condition (in leverage defined in FxTargetLinearPayoffRegion complexType),
counterCurrencyAmount (in leverage defined in FxTargetLinearPayoffRegion complexType),
level (defined in FxTargetConditionLevel.model group),
levelReference,
notionalAmount (in leverage defined in FxTargetLinearPayoffRegion complexType),
pivotReference,
ratio (in leverage defined in FxTargetLinearPayoffRegion complexType),
strikeReference (defined in FxTargetConditionLevel.model group)
All Direct / Indirect Based Elements (1):
leverage  (defined in FxTargetLinearPayoffRegion complexType)
Known Usage Locations
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="FxTargetLeverage">
<xsd:sequence>
<xsd:element name="condition" type="ConditionEnum"/>
<xsd:group ref="FxTargetConditionLevel.model"/>
<xsd:choice>
<xsd:element name="ratio" type="Schedule"/>
<xsd:sequence>
<xsd:element name="notionalAmount" type="NonNegativeAmountSchedule"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="counterCurrencyAmount" type="FxCounterCurrencyAmount"/>
</xsd:sequence>
</xsd:choice>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 4/9)
condition
Type:
ConditionEnum, simple content
Condition in which leverage applies.
Simple Content
enumeration of xsd:token
Enumeration:
"AtOrAbove"
 -
The event rate must be greater than or equal to the specified trigger rate.
See:  http://www.FpML.org
"AtOrBelow"
 -
The event rate must be less than or equal to the specified trigger rate.
See:  http://www.FpML.org
"Above"
 -
The event rate must be greater than the specified trigger rate.
See:  http://www.FpML.org
"Below"
 -
The event rate must be less than the specified trigger rate.
See:  http://www.FpML.org
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="condition" type="ConditionEnum"/>
counterCurrencyAmount
Type:
FxCounterCurrencyAmount, complex content
The opposite currency amount of the Target.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="counterCurrencyAmount" type="FxCounterCurrencyAmount"/>
notionalAmount
Type:
NonNegativeAmountSchedule, complex content
Leveraged notional expressed as amount with optional steps.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="notionalAmount" type="NonNegativeAmountSchedule"/>
ratio
Type:
Schedule, complex content
Leverage rate with optional steps. Format is 2 for 200%.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="ratio" type="Schedule"/>
