complexType "FxTargetPhysicalSettlement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-fx-targets-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

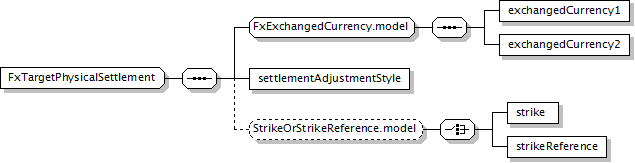

Component Diagram
XML Representation Summary
<...>

Content:
exchangedCurrency1, exchangedCurrency2, settlementAdjustmentStyle, (strike | strikeReference)?
</...>
Content Model Elements (5):
exchangedCurrency1 (defined in FxExchangedCurrency.model group),
exchangedCurrency2 (defined in FxExchangedCurrency.model group),
settlementAdjustmentStyle (in physicalSettlement defined in FxTargetConstantPayoffRegion complexType),
strike (in physicalSettlement defined in FxTargetConstantPayoffRegion complexType),
strikeReference (in physicalSettlement defined in FxTargetConstantPayoffRegion complexType)
All Direct / Indirect Based Elements (1):
physicalSettlement  (defined in FxTargetConstantPayoffRegion complexType)
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FxTargetPhysicalSettlement">
<xsd:sequence>
<xsd:group ref="FxExchangedCurrency.model"/>
<xsd:group minOccurs="0" ref="StrikeOrStrikeReference.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/5)
settlementAdjustmentStyle
Type:
FxSettlementAdjustmentMethodEnum, simple content
The Settlement Adjustment Style can be VariedStrike or VariedNotional.
Simple Content
enumeration of xsd:token
Enumeration:
"VariedStrike", "VariedNotional"
XML Source (w/o annotations (1); see within schema source)
