element <settlementPeriod> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxTargetSettlementPeriod
Content:
complex, 6 elements
Defined:
locally within FxTargetSettlementPeriodSchedule complexType in fpml-fx-targets-5-13.xsd; see XML source

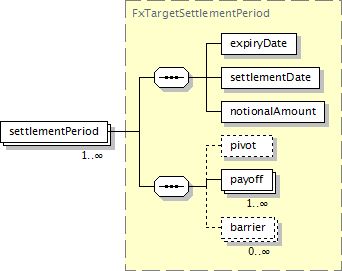

Component Diagram
XML Representation Summary
<settlementPeriod>

Content:
expiryDate, settlementDate, notionalAmount, pivot?, payoff+, barrier*
</settlementPeriod>
Content model elements (6):
barrier (in settlementPeriod in settlementPeriodSchedule in fxTargetKnockoutForward),
expiryDate (defined in SettlementPeriod complexType),
notionalAmount (defined in SettlementPeriod complexType),
payoff (in settlementPeriod in settlementPeriodSchedule in fxTargetKnockoutForward),
pivot (in settlementPeriod in settlementPeriodSchedule in fxTargetKnockoutForward),
settlementDate (defined in SettlementPeriod complexType)
Included in content model of elements (1):
settlementPeriodSchedule  (in fxTargetKnockoutForward)
Annotation
Defines each settlement period in the tabular/matrix representation of the product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="settlementPeriod" type="FxTargetSettlementPeriod"/>
