complexType "GenericFrequency"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-generic-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

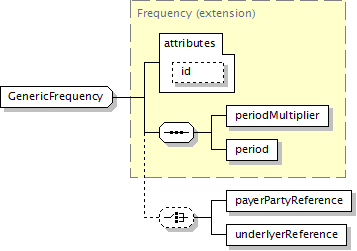

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
periodMultiplier, period, (payerPartyReference | underlyerReference)?
</...>
Content Model Elements (4):
payerPartyReference (in paymentFrequency in genericProduct),
period (defined in Frequency complexType),
periodMultiplier (defined in Frequency complexType),
underlyerReference (in paymentFrequency in genericProduct)
All Direct / Indirect Based Elements (1):
paymentFrequency  (in genericProduct)
Known Usage Locations
Type Definition Detail
Type Derivation Tree
Frequency (extension)
  GenericFrequency
XML Source (see within schema source)
<xsd:complexType name="GenericFrequency">
<xsd:complexContent>
<xsd:extension base="Frequency">
<xsd:choice minOccurs="0">
<xsd:element name="payerPartyReference" type="PartyReference"/>
<xsd:element name="underlyerReference" type="UnderlyerReference"/>
</xsd:choice>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/4)
payerPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element name="payerPartyReference" type="PartyReference"/>
underlyerReference
Type:
UnderlyerReference, empty content
XML Source (see within schema source)
<xsd:element name="underlyerReference" type="UnderlyerReference"/>
