complexType "BulletPayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 6 elements
Defined:
globally in fpml-ird-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

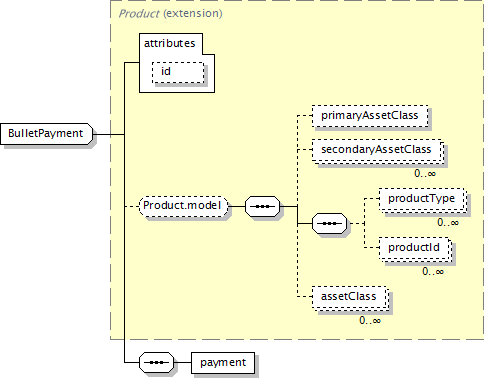

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, payment
</...>
Content Model Elements (6):
assetClass,
payment (in bulletPayment),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass
All Direct / Indirect Based Elements (1):
bulletPayment
Known Usage Locations
Annotation
A product to represent a single cashflow.
Type Definition Detail
Type Derivation Tree
Product (extension)
  BulletPayment
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="BulletPayment">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:element name="payment" type="Payment"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/6)
payment
Type:
Payment, complex content
A known payment between two parties.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="payment" type="Payment"/>
