element <relativeDate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RelativeDateOffset
Content:
complex, 1 attribute, 8 elements
Defined:
locally within CashSettlementPaymentDate complexType in fpml-ird-5-13.xsd; see XML source

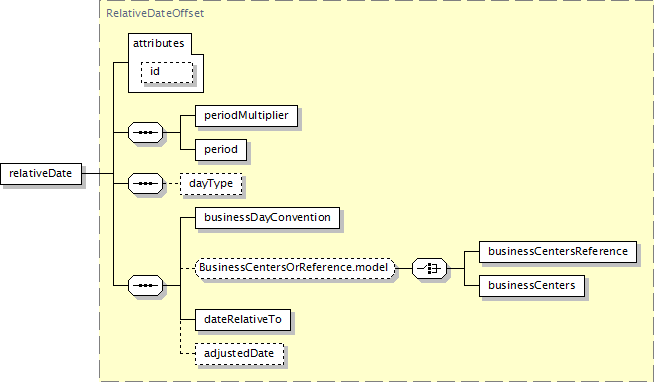

Component Diagram
XML Representation Summary
<relativeDate

id
 =
xsd:ID

>

Content:
periodMultiplier, period, dayType?, businessDayConvention, (businessCentersReference | businessCenters)?, dateRelativeTo, adjustedDate?
</relativeDate>
Content model elements (8):
adjustedDate (defined in RelativeDateOffset complexType),
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
businessDayConvention (defined in RelativeDateOffset complexType),
dateRelativeTo (defined in RelativeDateOffset complexType),
dayType (defined in Offset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
Included in content model of elements (1):
cashSettlementPaymentDate
Annotation
A date specified as some offset to another date (the anchor date).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="relativeDate" type="RelativeDateOffset"/>
