element <cashSettlementPaymentDate> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CashSettlementPaymentDate
Content:	complex, 1 attribute, 3 elements
Defined:	locally within CashSettlement complexType in fpml-ird-5-13.xsd; see XML source

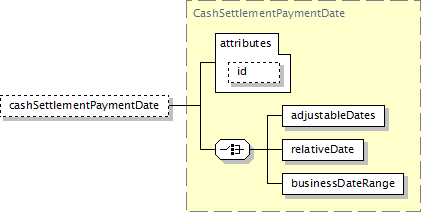

Component Diagram

XML Representation Summary

<cashSettlementPaymentDate

xsd:ID

Content:

adjustableDates | relativeDate | businessDateRange

</cashSettlementPaymentDate>

Content model elements (3):

adjustableDates (in cashSettlementPaymentDate),

businessDateRange,

relativeDate (in cashSettlementPaymentDate)

Included in content model of elements (3):

cashSettlement (defined in MandatoryEarlyTermination complexType),

cashSettlement (defined in OptionalEarlyTermination complexType),

cashSettlement (in swaption)

Annotation

The date on which the cash settlement amount will be paid, subject to adjustment in accordance with any applicable business day convention. This component would not be present for a mandatory early termination provision where the cash settlement payment date is the mandatory early termination date.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="cashSettlementPaymentDate" type="CashSettlementPaymentDate"/>
