element <paymentCalculationPeriod> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PaymentCalculationPeriod
Content:
complex, 2 attributes, 7 elements
Defined:
locally within Cashflows complexType in fpml-ird-5-13.xsd; see XML source

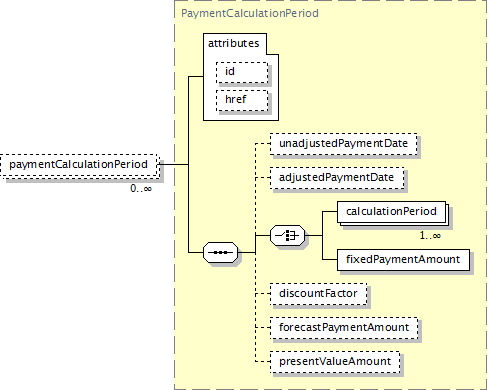

Component Diagram
XML Representation Summary
<paymentCalculationPeriod

id
 =
xsd:ID
href
 =
xsd:IDREF

>

Content:
unadjustedPaymentDate?, adjustedPaymentDate?, (calculationPeriod+ | fixedPaymentAmount), discountFactor?, forecastPaymentAmount?, presentValueAmount?
</paymentCalculationPeriod>
Content model elements (7):
adjustedPaymentDate (in paymentCalculationPeriod),
calculationPeriod (in paymentCalculationPeriod),
discountFactor (in paymentCalculationPeriod),
fixedPaymentAmount,
forecastPaymentAmount,
presentValueAmount (in paymentCalculationPeriod),
unadjustedPaymentDate
Included in content model of elements (1):
cashflows
Annotation
The adjusted payment date and associated calculation period parameters required to calculate the actual or projected payment amount. A list of payment calculation period elements may be ordered in the document by ascending adjusted payment date. An FpML document containing an unordered list of payment calculation periods is still regarded as a conformant document.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentCalculationPeriod" type="PaymentCalculationPeriod"/>
