element <principalExchange> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PrincipalExchange
Content:
complex, 1 attribute, 5 elements
Defined:
locally within Cashflows complexType in fpml-ird-5-13.xsd; see XML source

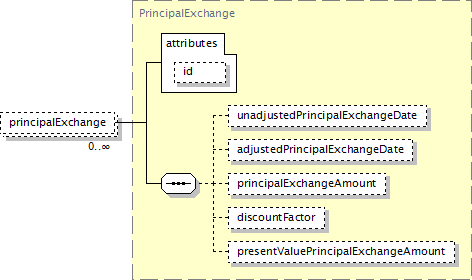

Component Diagram
XML Representation Summary
<principalExchange

id
 =
xsd:ID

>

Content:
unadjustedPrincipalExchangeDate?, adjustedPrincipalExchangeDate?, principalExchangeAmount?, discountFactor?, presentValuePrincipalExchangeAmount?
</principalExchange>
Content model elements (5):
adjustedPrincipalExchangeDate,
discountFactor (in principalExchange),
presentValuePrincipalExchangeAmount,
principalExchangeAmount (in principalExchange),
unadjustedPrincipalExchangeDate
Included in content model of elements (1):
cashflows
Annotation
The initial, intermediate and final principal exchange amounts. Typically required on cross currency interest rate swaps where actual exchanges of principal occur. A list of principal exchange elements may be ordered in the document by ascending adjusted principal exchange date. An FpML document containing an unordered principal exchange list is still regarded as a conformant document.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="principalExchange" type="PrincipalExchange"/>
