element <rateObservation> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RateObservation
Content:
complex, 1 attribute, 9 elements
Defined:
locally within FloatingRateDefinition complexType in fpml-ird-5-13.xsd; see XML source

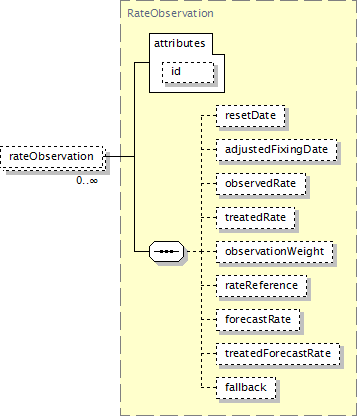

Component Diagram
XML Representation Summary
<rateObservation

id
 =
xsd:ID

>

Content:
resetDate?, adjustedFixingDate?, observedRate?, treatedRate?, observationWeight?, rateReference?, forecastRate?, treatedForecastRate?, fallback?
</rateObservation>
Content model elements (9):
adjustedFixingDate,
fallback (in rateObservation in floatingRateDefinition),
forecastRate (in rateObservation in floatingRateDefinition),
observationWeight,
observedRate (in rateObservation in floatingRateDefinition),
rateReference,
resetDate (in rateObservation in floatingRateDefinition),
treatedForecastRate,
treatedRate
Included in content model of elements (1):
floatingRateDefinition
Annotation
The details of a particular rate observation, including the fixing date and observed rate. A list of rate observation elements may be ordered in the document by ascending adjusted fixing date. An FpML document containing an unordered list of rate observations is still regarded as a conformant document.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="rateObservation" type="RateObservation"/>
