element <cashSettlement> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CashSettlement
Content:
complex, 1 attribute, 12 elements
Defined:
locally within OptionalEarlyTermination complexType in fpml-ird-5-13.xsd; see XML source

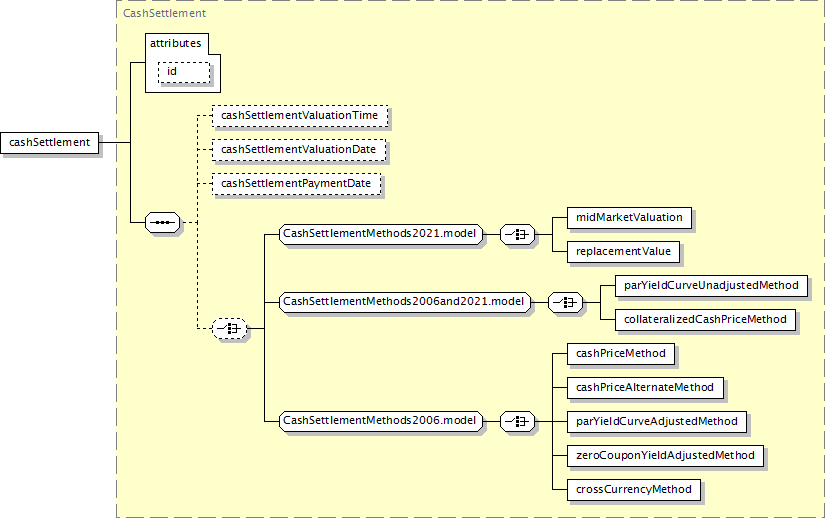

Component Diagram
XML Representation Summary
<cashSettlement

id
 =
xsd:ID

>

Content:
cashSettlementValuationTime?, cashSettlementValuationDate?, cashSettlementPaymentDate?, (midMarketValuation | replacementValue | parYieldCurveUnadjustedMethod | collateralizedCashPriceMethod | cashPriceMethod | cashPriceAlternateMethod | parYieldCurveAdjustedMethod | zeroCouponYieldAdjustedMethod | crossCurrencyMethod)?
</cashSettlement>
Content model elements (12):
cashPriceAlternateMethod, cashPriceMethod, cashSettlementPaymentDate, cashSettlementValuationDate, cashSettlementValuationTime, collateralizedCashPriceMethod, crossCurrencyMethod, midMarketValuation, parYieldCurveAdjustedMethod, parYieldCurveUnadjustedMethod, replacementValue, zeroCouponYieldAdjustedMethod
Included in content model of elements (2):
optionalEarlyTermination (defined in OptionalEarlyTermination.model group),
optionalEarlyTermination (defined in OptionalEarlyTermination.model group)
Annotation
If specified, this means that cash settlement is applicable to the transaction and defines the parameters associated with the cash settlement prodcedure. If not specified, then physical settlement is applicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="cashSettlement" type="CashSettlement"/>
