element <swapStream> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
InterestRateStream
Content:
complex, 1 attribute, 14 elements
Defined:
locally within Swap complexType in fpml-ird-5-13.xsd; see XML source

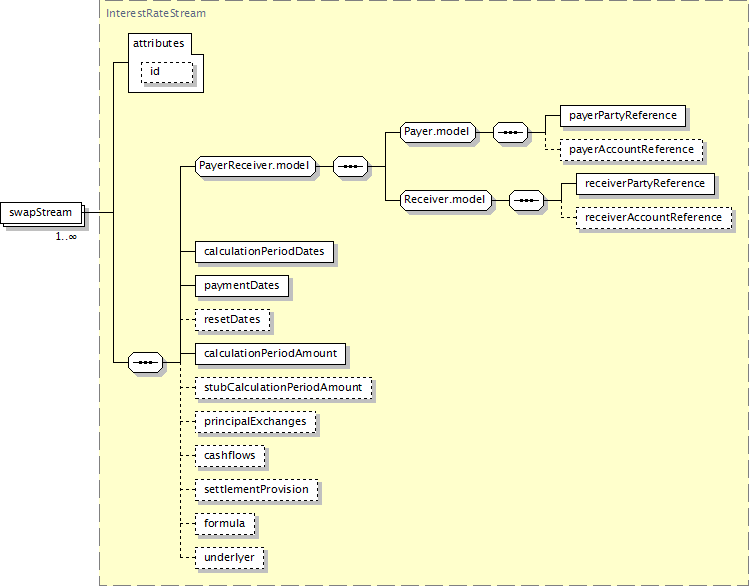

Component Diagram
XML Representation Summary
<swapStream

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, calculationPeriodDates, paymentDates, resetDates?, calculationPeriodAmount, stubCalculationPeriodAmount?, principalExchanges?, cashflows?, settlementProvision?, formula?, underlyer?
</swapStream>
Content model elements (14):
calculationPeriodAmount,
calculationPeriodDates,
cashflows,
formula (defined in InterestRateStream complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentDates (defined in InterestRateStream complexType),
principalExchanges (defined in InterestRateStream complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
resetDates,
settlementProvision,
stubCalculationPeriodAmount,
underlyer (defined in InterestRateStream complexType)
Included in content model of elements (2):
swap,
swap (in swaption)
Annotation
The swap streams.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="swapStream" type="InterestRateStream"/>
