element <swap> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Swap
Content:
complex, 1 attribute, 11 elements
Defined:
locally within Swaption complexType in fpml-ird-5-13.xsd; see XML source

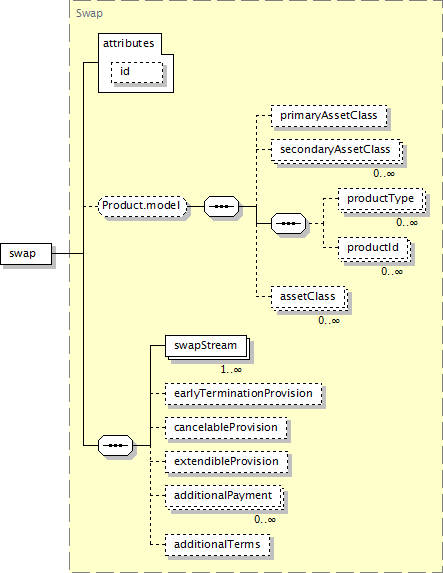

Component Diagram
XML Representation Summary
<swap

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, swapStream+, earlyTerminationProvision?, cancelableProvision?, extendibleProvision?, additionalPayment*, additionalTerms?
</swap>
Content model elements (11):
additionalPayment (defined in Swap complexType),
additionalTerms,
assetClass,
cancelableProvision,
earlyTerminationProvision (defined in Swap complexType),
extendibleProvision,
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
swapStream
Included in content model of elements (1):
swaption
XML Source (see within schema source)
<xsd:element name="swap" type="Swap"/>
