element <inflationRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
anonymous complexType
Content:
complex, 10 elements
Defined:
locally within ReturnInflation.model group in fpml-ird-5-13.xsd; see XML source
Includes:
definitions of 10 elements

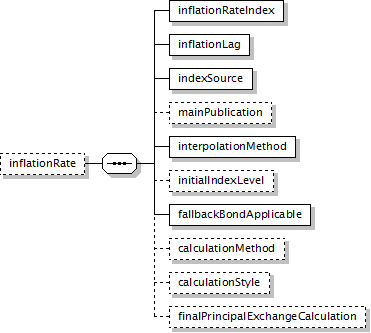

Component Diagram
XML Representation Summary
<inflationRate>

Content:
inflationRateIndex, inflationLag, indexSource, mainPublication?, interpolationMethod, initialIndexLevel?, fallbackBondApplicable, calculationMethod?, calculationStyle?, finalPrincipalExchangeCalculation?
</inflationRate>
Content model elements (10):
calculationMethod (in inflationRate),
calculationStyle (in inflationRate),
fallbackBondApplicable (in inflationRate),
finalPrincipalExchangeCalculation (in inflationRate),
indexSource (in inflationRate),
inflationLag (in inflationRate),
inflationRateIndex,
initialIndexLevel (in inflationRate),
interpolationMethod (in inflationRate),
mainPublication (in inflationRate)
Included in content model of elements (1):
returnCalculation
XML Source (w/o annotations (9); see within schema source)
<xsd:element minOccurs="0" name="inflationRate">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="inflationRateIndex" type="FloatingRateIndex"/>
<xsd:element name="inflationLag" type="Offset"/>
<xsd:element name="indexSource" type="RateSourcePage"/>
<xsd:element minOccurs="0" name="mainPublication" type="MainPublication"/>
<xsd:element name="interpolationMethod" type="InterpolationMethod"/>
<xsd:element minOccurs="0" name="initialIndexLevel" type="xsd:decimal"/>
<xsd:element name="fallbackBondApplicable" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="calculationMethod" type="InflationCalculationMethodEnum"/>
<xsd:element minOccurs="0" name="calculationStyle" type="InflationCalculationStyleEnum"/>
<xsd:element minOccurs="0" name="finalPrincipalExchangeCalculation" type="FinalPrincipalExchangeCalculation"/>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
Content Element Detail (all declarations; defined within this component only; 10/10)
calculationMethod
Type:
InflationCalculationMethodEnum, simple content
Indicates how to use the inflation index to calculate the payment (e.g. Ratio, Return, Spread). Added for Inflation Asset Swap
Simple Content
enumeration of xsd:token
Enumeration:
"Ratio"
 -
(Inflation Index Final / Inflation Index Base). Inflation Index Final is inflation index for Reference Month that is the Lag number of months prior to Payment Date (subject to interpolation). Inflation Index Base subject to the Calculation Style. Used in inflation asset swaps to calculate the inflation coupons and principal exchange.
"Return"
 -
(Inflation Index Final / Inflation Index Base -1). Inflation Index Final is the inflation index for Reference Month that is the Lag number of months prior to Payment Date (subject to interp). Inflation Index Base subject to the Calculation Style. Used in market standard ZC Inflation swaps.
"Spread"
 -
Inflation Index Final - Inflation Index Base). Inflation Index Final is Index for Ref month the Lag months prior to Payment Date (subject to interp). Inflation Index Base subject to the Calculation Style. Typically used for fixing locks.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationMethod" type="InflationCalculationMethodEnum"/>
calculationStyle
Type:
InflationCalculationStyleEnum, simple content
Indicates the style of how the inflation index calculates the payment (e.g. YearOnYear, ZeroCoupon).
Simple Content
enumeration of xsd:token
Enumeration:
"YearOnYear"
 -
YearOnYear means Inflation Index Base is the inflation index for Reference Month that is 12 months prior to Inflation Index Final (subject to interpolation). Inflation Index Base is cashflow dependent.
"ZeroCoupon"
 -
ZeroCoupon means Inflation Index Base used in the CalculationMethod is the inflation index for the Reference Month that is the lag number of months prior to Effective Date in the case of a swap, or Bond Interest Accrual Date in the case of an Asset Swap (subject to interpolation). Inflation Index Base has the same value for each inflation cashflow and Principal Exchange calculation within the trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationStyle" type="InflationCalculationStyleEnum"/>
fallbackBondApplicable
Type:
xsd:boolean, predefined, simple content
The applicability of a fallback bond as defined in the 2006 ISDA Inflation Derivatives Definitions, sections 1.3 and 1.8.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fallbackBondApplicable" type="xsd:boolean"/>
finalPrincipalExchangeCalculation
Type:
FinalPrincipalExchangeCalculation, complex content
To be specified only for inflation products that embed a redemption payment, e.g. inflation linked asset swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="finalPrincipalExchangeCalculation" type="FinalPrincipalExchangeCalculation"/>
indexSource
Type:
RateSourcePage, simple content
The reference source such as Reuters or Bloomberg.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="indexSource" type="RateSourcePage"/>
inflationLag
Type:
Offset, complex content
an offsetting period from the payment date which determines the reference period for which the inflation index is onserved.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="inflationLag" type="Offset"/>
inflationRateIndex
Type:
FloatingRateIndex, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="inflationRateIndex" type="FloatingRateIndex"/>
initialIndexLevel
Type:
xsd:decimal, predefined, simple content
initial known index level for the first calculation period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="initialIndexLevel" type="xsd:decimal"/>
interpolationMethod
Type:
InterpolationMethod, simple content
The method used when calculating the Inflation Index Level from multiple points - the most common is Linear.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="interpolationMethod" type="InterpolationMethod"/>
mainPublication
Type:
MainPublication, simple content
The current main publication source such as relevant web site or a government body.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="mainPublication" type="MainPublication"/>
