element <parentEventIdentifier> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ParentEventIdentifier
Content:	complex, 1 attribute, 4 elements
Defined:	locally within AbstractLoanEvent complexType in fpml-loan-5-13.xsd; see XML source

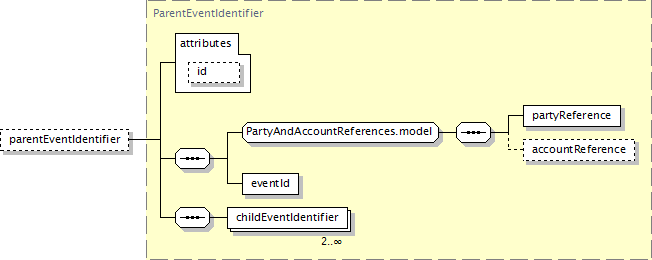

Component Diagram

XML Representation Summary

<parentEventIdentifier

=

xsd:ID

>

Content:

partyReference, accountReference?, eventId, childEventIdentifier[2..*]

</parentEventIdentifier>

Content model elements (4):

accountReference (defined in PartyAndAccountReferences.model group),

childEventIdentifier,

partyReference (defined in PartyAndAccountReferences.model group)

Included in content model of elements (56):

accrualOptionChange,

accruingFeeChange,

accruingFeeExpiry,

accruingFeePayment,

accruingPikPayment,

amendmentFeePayment,

breakageFeePayment,

commitmentAdjustment,

commitmentAdjustment (in economicBenefit),

defaultRateChange,

defaultRateExpiry,

facilityEventGroup,

facilityExtensionFeePayment,

facilityPrepayment,

facilityPrepaymentFeePayment,

facilityTermination,

fundingFeePayment,

interestCapitalization,

interestPayment,

lcFxRevaluation,

lcIssuanceFeePayment,

legacyInterestCapitalization,

legacyInterestPayment,

loanAllocation,

loanAllocationConfirmation,

loanAllocationEventGroup,

loanAllocationFeeDue,

loanAllocationFeeOwed,

loanAllocationSettlement,

loanAllocationSettlementDateAvailability,

loanAllocationSettlementDateFinalization,

loanContractAdjustment,

loanContractEventGroup,

loanTradeConfirmation,

loanTradeEventGroup,

loanTradeFeeDue,

loanTradeFeeOwed,

mandatoryCostRateChange,

mandatoryCostRateExpiry,

maturityChange,

miscFeePayment,

penaltyRateChange,

penaltyRateExpiry,

upfrontFeePayment,

waiverFeePayment

Annotation

A structure used to relate child events to one another, with an overarching parent identifier. The parent identifier does not itself represent an event, but rather provides a mechanism to describe all related. The event described by this message should be included as a child event in this structure.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="parentEventIdentifier" type="ParentEventIdentifier"/>
