complexType "BusinessEventIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 1 element
Used:
at 9 locations

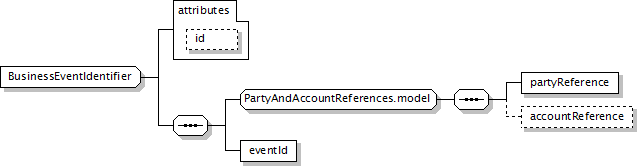

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
partyReference, accountReference?, eventId
</...>
Content Model Elements (3):
accountReference (defined in PartyAndAccountReferences.model group),
eventId,
partyReference (defined in PartyAndAccountReferences.model group)
Known Direct Subtypes (1):
ParentEventIdentifier
All Direct / Indirect Based Elements (9):
childEventIdentifier,
correctedEventIdentifier,
eventIdentifier (defined in AbstractEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
eventIdentifier (defined in LoanIdentifiers.model group),
eventIdentifier (in economicBenefit),
eventIdentifier (in eventPayment),
parentEventIdentifier,
previousEventIdentifier
Known Usage Locations
Annotation
A type defining an event identifier issued by the indicated party.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="BusinessEventIdentifier">
<xsd:sequence>
<xsd:group ref="PartyAndAccountReferences.model"/>
<xsd:element name="eventId" type="EventId"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 1/3)
eventId
Type:
EventId, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (see within schema source)
<xsd:element name="eventId" type="EventId"/>
