complexType "ApplicableSettlementInstructionDetails"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

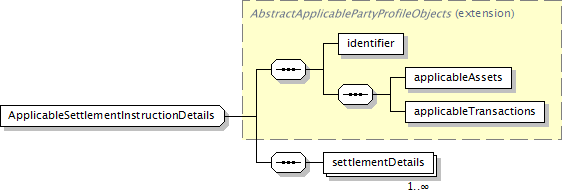

Component Diagram
XML Representation Summary
<...>

Content:
identifier, applicableAssets, applicableTransactions, settlementDetails+
</...>
Content Model Elements (4):
applicableAssets,
applicableTransactions,
identifier (defined in AbstractApplicablePartyProfileObjects complexType),
settlementDetails
All Direct / Indirect Based Elements (1):
settlementInstructionDetails
Known Usage Locations
Annotation
A structure that defines the assets (or type of assets) that a particular set of settlement instrution details may be associated with.
Type Definition Detail
Type Derivation Tree
AbstractApplicablePartyProfileObjects (extension)
  ApplicableSettlementInstructionDetails
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="ApplicableSettlementInstructionDetails">
<xsd:complexContent>
<xsd:extension base="AbstractApplicablePartyProfileObjects">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="settlementDetails" type="SettlementDetails"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
settlementDetails
Type:
SettlementDetails, complex content
Settlement account details to describe the acount to which cash should be sent, for payments received by the party sending the Lender Party Notification.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="settlementDetails" type="SettlementDetails"/>
