complexType "AssociationToAssetId"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
simple, 2 attributes
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 2 attributes
Used:
at 1 location

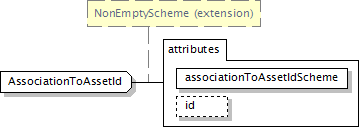

Component Diagram
XML Representation Summary
<...

associationToAssetIdScheme
 =
xsd:anyURI
id
 =
xsd:ID

>

Content:
{ xsd:normalizedString }
</...>
Simple Content Restrictions:
MaxLength:
255
MinLength:
1
All Direct / Indirect Based Elements (1):
associationId
Known Usage Locations
Annotation
A structure that defines an association identifier based on a qualifying scheme.
Type Definition Detail
Type Derivation Tree
xsd:normalizedString (restriction)
  NormalizedString (restriction)
      NonEmptyScheme (extension)
          AssociationToAssetId
Derivation:
extension of NonEmptyScheme
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="AssociationToAssetId">
<xsd:simpleContent>
<xsd:extension base="NonEmptyScheme">
<xsd:attribute name="associationToAssetIdScheme" type="xsd:anyURI" use="required"/>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 2/2)
associationToAssetIdScheme
Type:
xsd:anyURI, predefined
Use:
required
XML Source (see within schema source)
<xsd:attribute name="associationToAssetIdScheme" type="xsd:anyURI" use="required"/>
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
