complexType "FacilityStatement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 13 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

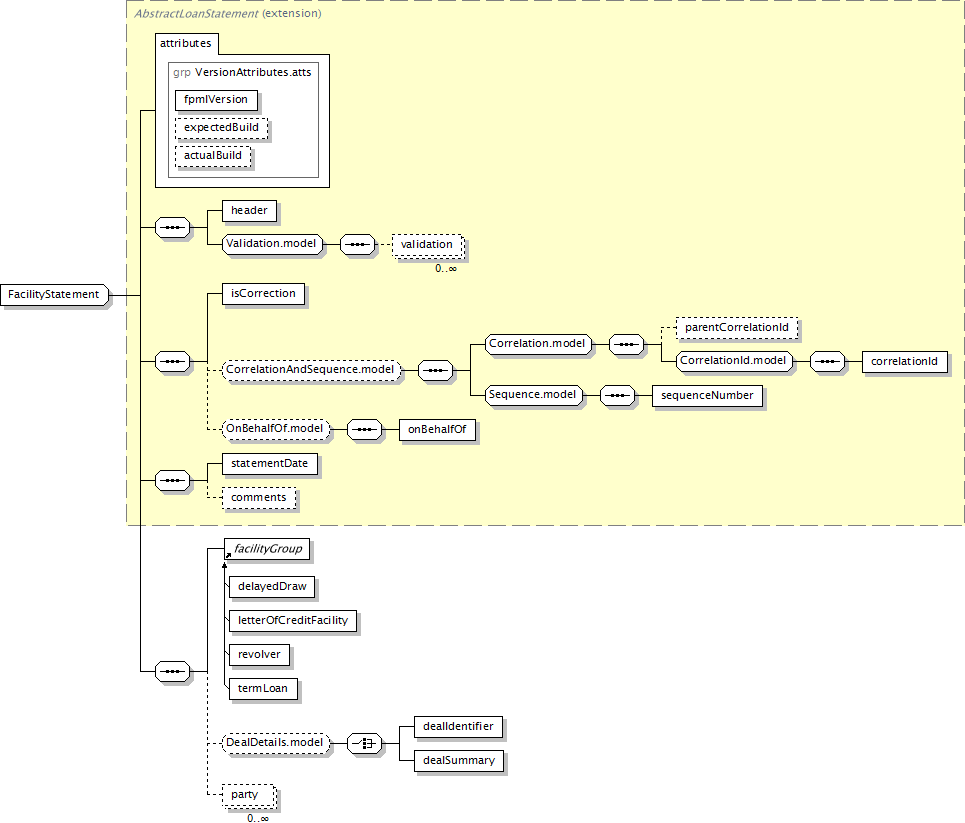

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, statementDate, comments?, facilityGroup, (dealIdentifier | dealSummary)?, party*
</...>
Content Model Elements (13):
comments (defined in AbstractLoanStatement complexType),
correlationId,
dealIdentifier (defined in DealDetails.model group),
dealSummary,
facilityGroup,
header (defined in RequestMessage complexType),
isCorrection,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (in facilityStatement),
sequenceNumber (defined in Sequence.model group),
statementDate,
validation
All Direct / Indirect Based Elements (1):
facilityStatement
Known Usage Locations
Annotation
A single facility definition stated as of a certain date.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              AbstractLoanStatement (extension)
                  FacilityStatement
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FacilityStatement">
<xsd:complexContent>
<xsd:extension base="AbstractLoanStatement">
<xsd:sequence>
<xsd:element ref="facilityGroup"/>
<xsd:group minOccurs="0" ref="DealDetails.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/13)
facilityGroup
Type:
AbstractFacility, complex content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 4 elements
XML Source (see within schema source)
<xsd:element ref="facilityGroup"/>
party
Type:
Party, complex content
A legal entity or a subdivision of a legal entity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>
