complexType "FeeRateOptionBase"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 4 locations

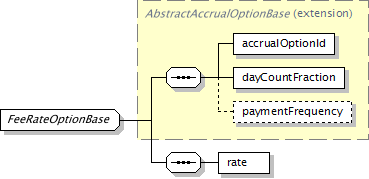

Component Diagram
XML Representation Summary
<...>

Content:
accrualOptionId, dayCountFraction, paymentFrequency?, rate
</...>
Content Model Elements (4):
accrualOptionId (defined in AbstractAccrualOptionBase complexType),
dayCountFraction (defined in AbstractAccrualOptionBase complexType),
paymentFrequency (defined in AbstractAccrualOptionBase complexType),
rate (defined in FeeRateOptionBase complexType)
Known Direct Subtypes (4):
AccruingFeeOption, AccruingPikOption, LcAccrual, LcOption
All Direct / Indirect Based Elements (7):
accruingFeeOption (defined in FacilityOptionsFeesAndRates.model group),
accruingFeeOption (in accruingFeeChange),
accruingPikOption (defined in FacilityOptionsFeesAndRates.model group),
accruingPikOption (in accrualOptionChange),
lcAccrual,
lcOption (defined in FacilityOptionsFeesAndRates.model group),
lcOption (in accrualOptionChange)
Known Usage Locations
Annotation
An abstract type that specifies an underlying fixed rate cash accrual option.
Type Definition Detail
Type Derivation Tree
AbstractAccrualOptionBase (extension)
  FeeRateOptionBase
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="FeeRateOptionBase">
<xsd:complexContent>
<xsd:extension base="AbstractAccrualOptionBase">
<xsd:sequence>
<xsd:element name="rate" type="xsd:decimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
rate
Type:
xsd:decimal, predefined, simple content
The applicable rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="rate" type="xsd:decimal"/>
