complexType "LoanLegalActionApprovalStatus"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 6 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

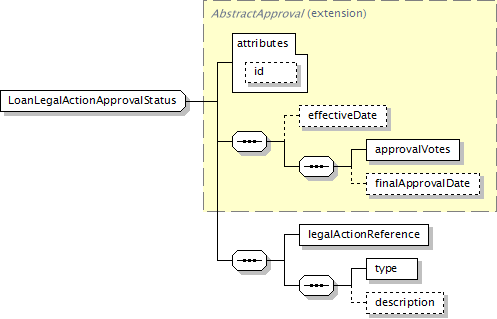

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
effectiveDate?, approvalVotes, finalApprovalDate?, legalActionReference, type, description?
</...>
Content Model Elements (6):
approvalVotes,
description (in legalActionApprovalStatus),
effectiveDate (in legalActionApprovalStatus),
finalApprovalDate,
legalActionReference (in legalActionApprovalStatus),
type (in legalActionApprovalStatus)
All Direct / Indirect Based Elements (1):
legalActionApprovalStatus
Known Usage Locations
Annotation
A structure that provides global level approval status on a legal action.
Type Definition Detail
Type Derivation Tree
AbstractApproval (extension)
  LoanLegalActionApprovalStatus
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="LoanLegalActionApprovalStatus">
<xsd:complexContent>
<xsd:extension base="AbstractApproval">
<xsd:sequence>
<xsd:element name="legalActionReference" type="LoanLegalActionReference"/>
<xsd:sequence>
<xsd:element name="type" type="LoanLegalActionApprovalStatusType"/>
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
</xsd:sequence>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/6)
description
Type:
NonEmptyNormalizedString, simple content
A free form text field to further describe the approval status.
Simple Content
xsd:normalizedString
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
legalActionReference
Type:
LoanLegalActionReference, empty content
XML Source (see within schema source)
<xsd:element name="legalActionReference" type="LoanLegalActionReference"/>
type
Type:
LoanLegalActionApprovalStatusType, simple content
Approved status as of the effective date, based on a scheme.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="type" type="LoanLegalActionApprovalStatusType"/>
