complexType "LoanLegalActionStatus"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 4 elements
Used:
at 1 location

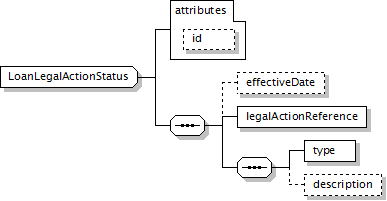

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
effectiveDate?, legalActionReference, type, description?
</...>
Content Model Elements (4):
description (in legalActionStatus),
effectiveDate (in legalActionStatus),
legalActionReference (in legalActionStatus),
type (in legalActionStatus)
All Direct / Indirect Based Elements (1):
legalActionStatus
Known Usage Locations
Annotation
A structure to describe the overall loan legal action status.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType abstract="false" name="LoanLegalActionStatus">
<xsd:sequence>
<xsd:element minOccurs="0" name="effectiveDate" type="xsd:date"/>
<xsd:element name="legalActionReference" type="LoanLegalActionReference"/>
<xsd:sequence>
<xsd:element name="type" type="LoanLegalActionStatusType"/>
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
</xsd:sequence>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 4/4)
description
Type:
NonEmptyNormalizedString, simple content
A free form field to provide additional description of the legal action status.
Simple Content
xsd:normalizedString
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
effectiveDate
Type:
xsd:date, predefined, simple content
The effective date of the loan legal action status details.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="effectiveDate" type="xsd:date"/>
legalActionReference
Type:
LoanLegalActionReference, empty content
XML Source (see within schema source)
<xsd:element name="legalActionReference" type="LoanLegalActionReference"/>
type
Type:
LoanLegalActionStatusType, simple content
Loan legal action status as of the effective date, based on a scheme.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="type" type="LoanLegalActionStatusType"/>
