complexType "LoanNotificationException"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 10 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

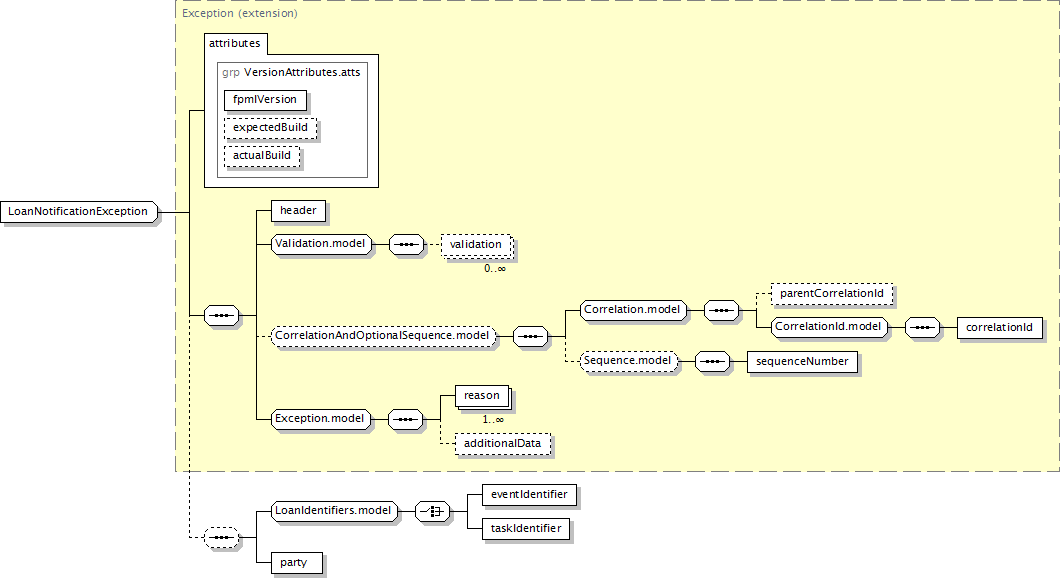

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, reason+, additionalData?, ((eventIdentifier | taskIdentifier), party)?
</...>
Content Model Elements (10):
additionalData (defined in Exception.model group),
correlationId,
eventIdentifier (defined in LoanIdentifiers.model group),
header (defined in Exception complexType),
parentCorrelationId,
party (in loanNotificationException),
reason (defined in Exception.model group),
sequenceNumber (defined in Sequence.model group),
taskIdentifier (defined in LoanIdentifiers.model group),
validation
All Direct / Indirect Based Elements (1):
loanNotificationException
Known Usage Locations
Annotation
A message used to indicate an exception issue with a loan notification.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      Exception (extension)
          LoanNotificationException
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="LoanNotificationException">
<xsd:complexContent>
<xsd:extension base="Exception">
<xsd:sequence minOccurs="0">
<xsd:group ref="LoanIdentifiers.model"/>
<xsd:element name="party" type="Party"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/10)
party
Type:
Party, complex content
XML Source (see within schema source)
<xsd:element name="party" type="Party"/>
XML schema documentation generated with FlexDoc/XML 1.12.2 using FlexDoc/XML XSDDoc 2.9.1 template set. All XSD diagrams generated by FlexDoc/XML DiagramKit.
