complexType "LoanTradingDelayedCompensation"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 7 elements
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 1 location

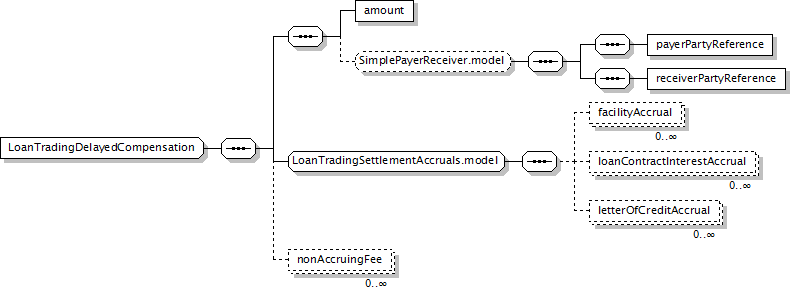

Component Diagram

XML Representation Summary

<...>

Content:

</...>

Content Model Elements (7):

All Direct / Indirect Based Elements (1):

Known Usage Locations

Annotation

A structure that incorporates elements of interest and fee accruals, for the purpose of defining delayed compensation.

XML Source (w/o annotations (4); see within schema source)

<xsd:sequence>

<xsd:element name="amount" type="NonNegativeMoney"/>

<xsd:group minOccurs="0" ref="SimplePayerReceiver.model"/>

</xsd:sequence>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="nonAccruingFee" type="LoanTradingNonAccruingFee"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/7)

Type:

NonNegativeMoney, complex content

The total delayed compensation amount. This is the sum of all the loan contract, letter of credit and on-going fee accrual amounts.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="amount" type="NonNegativeMoney"/>

Type:

Details the amount of nonaccruing fees associated with the traded portion of a facility commitment, loan contract, or letter of credit.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="nonAccruingFee" type="LoanTradingNonAccruingFee"/>
