complexType "LoanTradingLoanContractAccrual"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

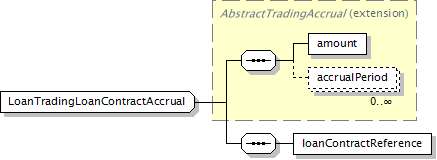

Component Diagram
XML Representation Summary
<...>

Content:
amount, accrualPeriod*, loanContractReference
</...>
Content Model Elements (3):
accrualPeriod,
amount (defined in AbstractTradingAccrual complexType),
loanContractReference (in loanContractInterestAccrual)
All Direct / Indirect Based Elements (1):
loanContractInterestAccrual
Known Usage Locations
Annotation
A structure that incorporates sub-periods of an accrual calculation for a traded outstanding contract.
Type Definition Detail
Type Derivation Tree
AbstractTradingAccrual (extension)
  LoanTradingLoanContractAccrual
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="LoanTradingLoanContractAccrual">
<xsd:complexContent>
<xsd:extension base="AbstractTradingAccrual">
<xsd:sequence>
<xsd:element name="loanContractReference" type="LoanContractReference"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
loanContractReference
Type:
LoanContractReference, empty content
A unique id for the loan contract.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="loanContractReference" type="LoanContractReference"/>
