complexType "PartyApprovalVote"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 4 elements
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 1 location

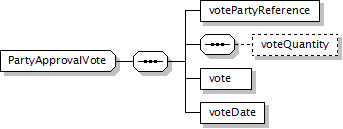

Component Diagram

XML Representation Summary

<...>

Content:

votePartyReference, voteQuantity?, vote, voteDate

</...>

Content Model Elements (4):

vote, voteDate, votePartyReference, voteQuantity

All Direct / Indirect Based Elements (1):

partyApprovalVotesList

Known Usage Locations

As direct type of elements (1):

partyApprovalVotesList

Annotation

A structure to describe a party's approval vote.

XML Source (w/o annotations (5); see within schema source)

<xsd:complexType name="PartyApprovalVote">

<xsd:sequence>

<xsd:element name="votePartyReference" type="PartyReference"/>

<xsd:sequence>

<xsd:element minOccurs="0" name="voteQuantity" type="VoteQuantity"/>

</xsd:sequence>

<xsd:element name="vote" type="ApprovalVoteDecision"/>

<xsd:element name="voteDate" type="xsd:date"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 4/4)

vote

Type:

ApprovalVoteDecision, complex content

The vote decision of the party.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="vote" type="ApprovalVoteDecision"/>

voteDate

Type:

xsd:date, predefined, simple content

The date on which the party provided their vote.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="voteDate" type="xsd:date"/>

votePartyReference

Type:

PartyReference, empty content

Reference to the party providing its approval.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="votePartyReference" type="PartyReference"/>

voteQuantity

Type:

VoteQuantity, complex content

The party's approval vote expressed as a number of votes, a percent of the total vote, or an amount (e.g. loan commitment amount).

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="voteQuantity" type="VoteQuantity"/>
