element <communicationDetails> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ApplicableCommunicationDetails
Content:
complex, 5 elements
Defined:
locally within PartyProfile complexType in fpml-loan-5-13.xsd; see XML source

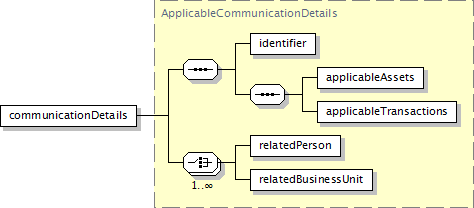

Component Diagram
XML Representation Summary
<communicationDetails>

Content:
identifier, applicableAssets, applicableTransactions, (relatedPerson | relatedBusinessUnit)+
</communicationDetails>
Content model elements (5):
applicableAssets,
applicableTransactions,
identifier (defined in AbstractApplicablePartyProfileObjects complexType),
relatedBusinessUnit (in communicationDetails),
relatedPerson (in communicationDetails)
Included in content model of elements (1):
partyProfile
Annotation
Relates an asset, or assets, to an element within a party block (customarily a business unit or person).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="communicationDetails" type="ApplicableCommunicationDetails"/>
