complexType "MultiDimensionalPricingData"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 15 elements
Defined:
globally in fpml-mktenv-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

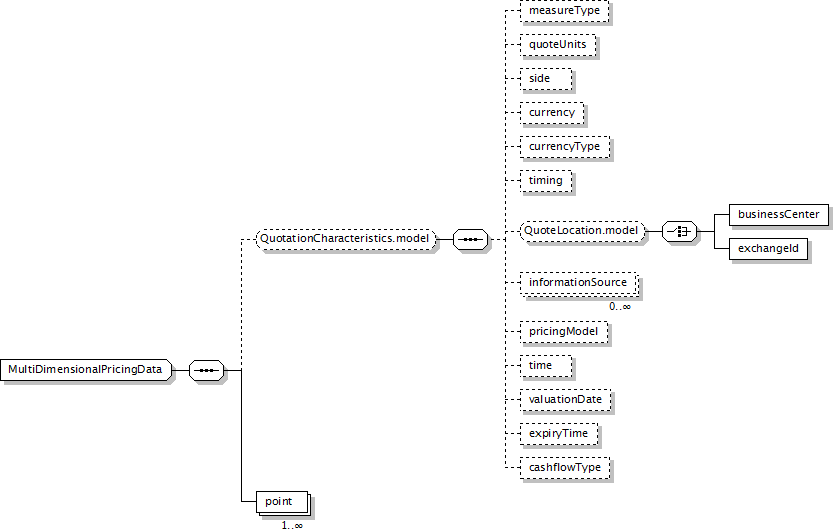

Component Diagram
XML Representation Summary
<...>

Content:
(measureType?, quoteUnits?, side?, currency?, currencyType?, timing?, (businessCenter | exchangeId)?, informationSource*, pricingModel?, time?, valuationDate?, expiryTime?, cashflowType?)?, point+
</...>
Content Model Elements (15):
businessCenter (defined in QuoteLocation.model group),
cashflowType (defined in QuotationCharacteristics.model group),
currency (defined in QuotationCharacteristics.model group),
currencyType,
exchangeId (defined in QuoteLocation.model group),
expiryTime (defined in QuotationCharacteristics.model group),
informationSource (defined in QuotationCharacteristics.model group),
measureType,
point (in dataPoints),
pricingModel,
quoteUnits (defined in QuotationCharacteristics.model group),
side (defined in QuotationCharacteristics.model group),
time (defined in QuotationCharacteristics.model group),
timing,
valuationDate (defined in QuotationCharacteristics.model group)
All Direct / Indirect Based Elements (1):
dataPoints
Known Usage Locations
Annotation
A pricing data set that contains a series of points with coordinates. It is a sparse matrix representation of a multi-dimensional matrix.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="MultiDimensionalPricingData">
<xsd:sequence>
<xsd:group minOccurs="0" ref="QuotationCharacteristics.model"/>
<xsd:element maxOccurs="unbounded" name="point" type="PricingStructurePoint"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/15)
point
Type:
PricingStructurePoint, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="point" type="PricingStructurePoint"/>
