complexType "RequestEventStatus"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 10 elements
Defined:
globally in fpml-msg-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

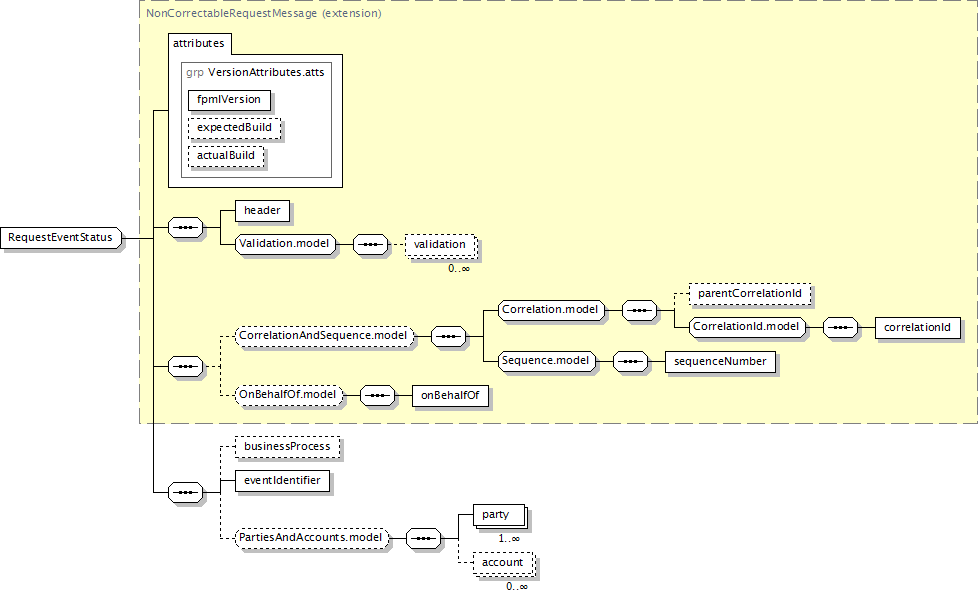

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, businessProcess?, eventIdentifier, (party+, account*)?
</...>
Content Model Elements (10):
account,
businessProcess,
correlationId,
eventIdentifier (in requestEventStatus),
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
validation
All Direct / Indirect Based Elements (1):
requestEventStatus
Known Usage Locations
Annotation
A type defining the content model for a message allowing one party to query the status of one event (trade or post-trade event) previously sent to another party.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              RequestEventStatus
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="RequestEventStatus">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="businessProcess" type="BusinessProcess"/>
<xsd:element name="eventIdentifier" type="EventIdentifier"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/10)
businessProcess
Type:
BusinessProcess, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element minOccurs="0" name="businessProcess" type="BusinessProcess"/>
eventIdentifier
Type:
EventIdentifier, complex content
XML Source (see within schema source)
<xsd:element name="eventIdentifier" type="EventIdentifier"/>
