complexType "RequestMessageHeader"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 9 elements
Defined:
globally in fpml-msg-5-13.xsd; see XML source
Used:
at 1 location

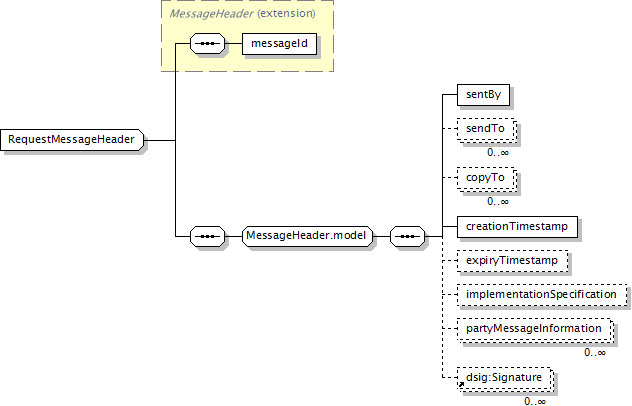

Component Diagram
XML Representation Summary
<...>

Content:
messageId, sentBy, sendTo*, copyTo*, creationTimestamp, expiryTimestamp?, implementationSpecification?, partyMessageInformation*, dsig:Signature*
</...>
Content Model Elements (9):
copyTo, creationTimestamp, dsig:Signature, expiryTimestamp, implementationSpecification, messageId, partyMessageInformation, sendTo, sentBy
All Direct / Indirect Based Elements (1):
header  (defined in RequestMessage complexType)
Known Usage Locations
Annotation
A type refining the generic message header content to make it specific to request messages.
Type Definition Detail
Type Derivation Tree
MessageHeader (extension)
  RequestMessageHeader
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="RequestMessageHeader">
<xsd:complexContent>
<xsd:extension base="MessageHeader">
<xsd:sequence>
<xsd:group ref="MessageHeader.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
