complexType "AveragingPeriod"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-option-shared-5-13.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 3 locations

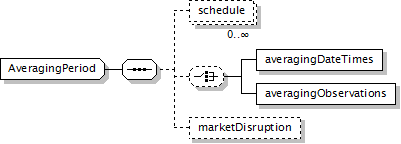

Component Diagram
XML Representation Summary
<...>

Content:
schedule*, (averagingDateTimes | averagingObservations)?, marketDisruption?
</...>
Content Model Elements (4):
averagingDateTimes,
averagingObservations,
marketDisruption (defined in AveragingPeriod complexType),
schedule (defined in AveragingPeriod complexType)
All Direct / Indirect Based Elements (3):
averagingDates, averagingPeriodIn, averagingPeriodOut
Known Usage Locations
Annotation
Period over which an average value is taken.
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="AveragingPeriod">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="schedule" type="AveragingSchedule"/>
<xsd:choice minOccurs="0">
<xsd:element name="averagingDateTimes" type="DateTimeList"/>
<xsd:element name="averagingObservations" type="AveragingObservationList"/>
</xsd:choice>
<xsd:element minOccurs="0" name="marketDisruption" type="MarketDisruption"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
averagingDateTimes
Type:
DateTimeList, complex content
An unweighted list of averaging observation date and times.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="averagingDateTimes" type="DateTimeList"/>
averagingObservations
Type:
AveragingObservationList, complex content
A weighted list of averaging observation date and times.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="averagingObservations" type="AveragingObservationList"/>
marketDisruption
Type:
MarketDisruption, simple content
The market disruption event as defined by ISDA 2002 Definitions.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="marketDisruption" type="MarketDisruption"/>
schedule
Type:
AveragingSchedule, complex content
A schedule for generating averaging observation dates.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="schedule" type="AveragingSchedule"/>
