complexType "AdjustableOffset"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 5 elements
Defined:
globally in fpml-repo-5-13.xsd; see XML source
Used:
at 5 locations

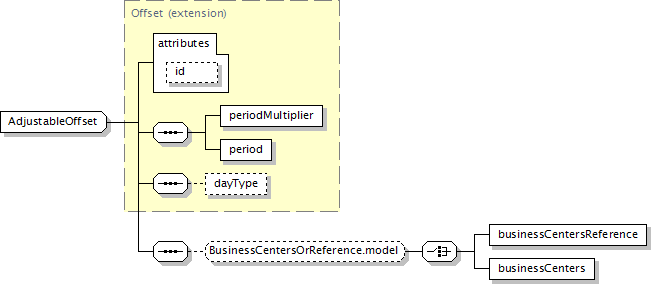

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
periodMultiplier, period, dayType?, (businessCentersReference | businessCenters)?
</...>
Content Model Elements (5):
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
dayType (defined in Offset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
All Direct / Indirect Based Elements (5):
extensionPeriod (defined in ExtensionPeriod.model group),
noticePeriod (defined in PartyNoticePeriod complexType),
noticePeriod (in repo),
noticePeriod (in repo),
noticePeriod (in securityLending)
Known Usage Locations
Annotation
An adjustable offset can be used to specify a number of days, business or calendar, for example in a notice period.
Type Definition Detail
Type Derivation Tree
Period (extension)
  Offset (extension)
      AdjustableOffset
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="AdjustableOffset">
<xsd:complexContent>
<xsd:extension base="Offset">
<xsd:sequence>
<xsd:group minOccurs="0" ref="BusinessCentersOrReference.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
