complexType "PricingStructureValuation"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 2 attributes, 7 elements
Defined:	globally in fpml-riskdef-5-13.xsd; see XML source
Used:	at 6 locations

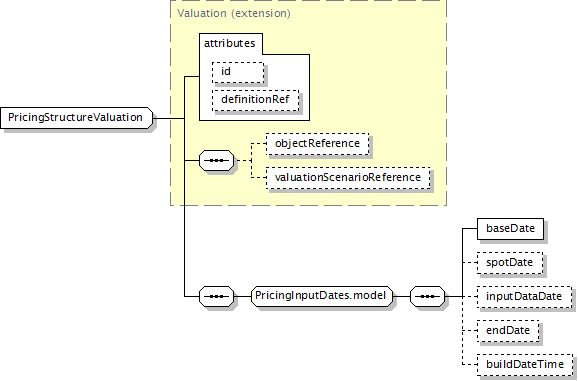

Component Diagram

XML Representation Summary

<...

id	=	xsd:ID
definitionRef	=	xsd:IDREF

Content:

objectReference?, valuationScenarioReference?, baseDate, spotDate?, inputDataDate?, endDate?, buildDateTime?

</...>

Content Model Elements (7):

baseDate,

buildDateTime,

endDate (defined in PricingInputDates.model group),

inputDataDate,

objectReference,

spotDate,

valuationScenarioReference (defined in Valuation complexType)

Known Direct Subtypes (5):

CreditCurveValuation, DefaultProbabilityCurve, FxCurveValuation, VolatilityMatrix, YieldCurveValuation

All Direct / Indirect Based Elements (6):

creditCurveValuation, defaultProbabilityCurve, fxCurveValuation, pricingStructureValuation, volatilityMatrixValuation, yieldCurveValuation

Known Usage Locations

In derivations of other global types (5):

CreditCurveValuation (as extension base),

DefaultProbabilityCurve (as extension base),

FxCurveValuation (as extension base),

VolatilityMatrix (as extension base),

YieldCurveValuation (as extension base)

As direct type of elements (1):

pricingStructureValuation

Annotation

An abstract pricing structure valuation base type. Used as a base for values of pricing structures such as yield curves and volatility matrices. Derived from the "Valuation" type.

Type Definition Detail

Type Derivation Tree

Valuation (extension)

PricingStructureValuation

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="PricingStructureValuation">

<xsd:complexContent>

<xsd:extension base="Valuation">

<xsd:sequence>

<xsd:group ref="PricingInputDates.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
