element <assetQuote> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	BasicAssetValuation
Content:	complex, 2 attributes, 3 elements
Defined:	locally within QuotedAssetSet complexType in fpml-riskdef-5-13.xsd; see XML source

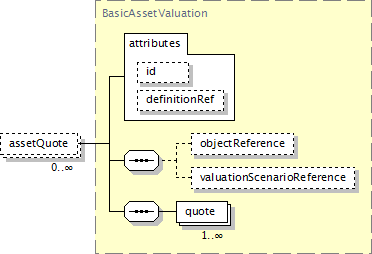

Component Diagram

XML Representation Summary

<assetQuote

id	=	xsd:ID
definitionRef	=	xsd:IDREF

Content:

objectReference?, valuationScenarioReference?, quote+

</assetQuote>

Content model elements (3):

objectReference,

quote (in assetQuote),

valuationScenarioReference (defined in Valuation complexType)

Included in content model of elements (4):

benchmarkQuotes,

inputs (in creditCurveValuation),

inputs (in yieldCurveValuation),

spotRate (in fxCurveValuation)

Annotation

A collection of valuations (quotes) for the assets needed in the set. Normally these quotes will be for the underlying assets listed above, but they don't necesarily have to be.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="assetQuote" type="BasicAssetValuation"/>
