element <exerciseFeeSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ExerciseFeeSchedule
Content:
complex, 8 elements
Defined:
locally within AmericanExercise complexType in fpml-shared-5-13.xsd; see XML source

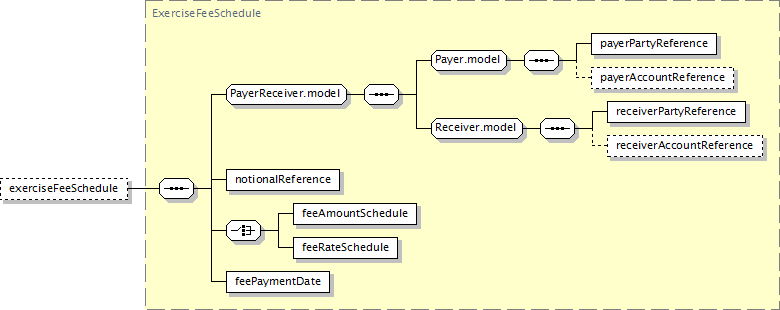

Component Diagram
XML Representation Summary
<exerciseFeeSchedule>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, notionalReference, (feeAmountSchedule | feeRateSchedule), feePaymentDate
</exerciseFeeSchedule>
Content model elements (8):
feeAmountSchedule,
feePaymentDate (defined in ExerciseFeeSchedule complexType),
feeRateSchedule,
notionalReference (defined in ExerciseFeeSchedule complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group)
Included in content model of elements (1):
americanExercise
Annotation
The fees associated with an exercise date. The fees are conditional on the exercise occuring. The fees can be specified as actual currency amounts or as percentages of the notional amount being exercised.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exerciseFeeSchedule" type="ExerciseFeeSchedule"/>
